CF 2140 (Signal Relay)
CF 2140
(Signal Relay)

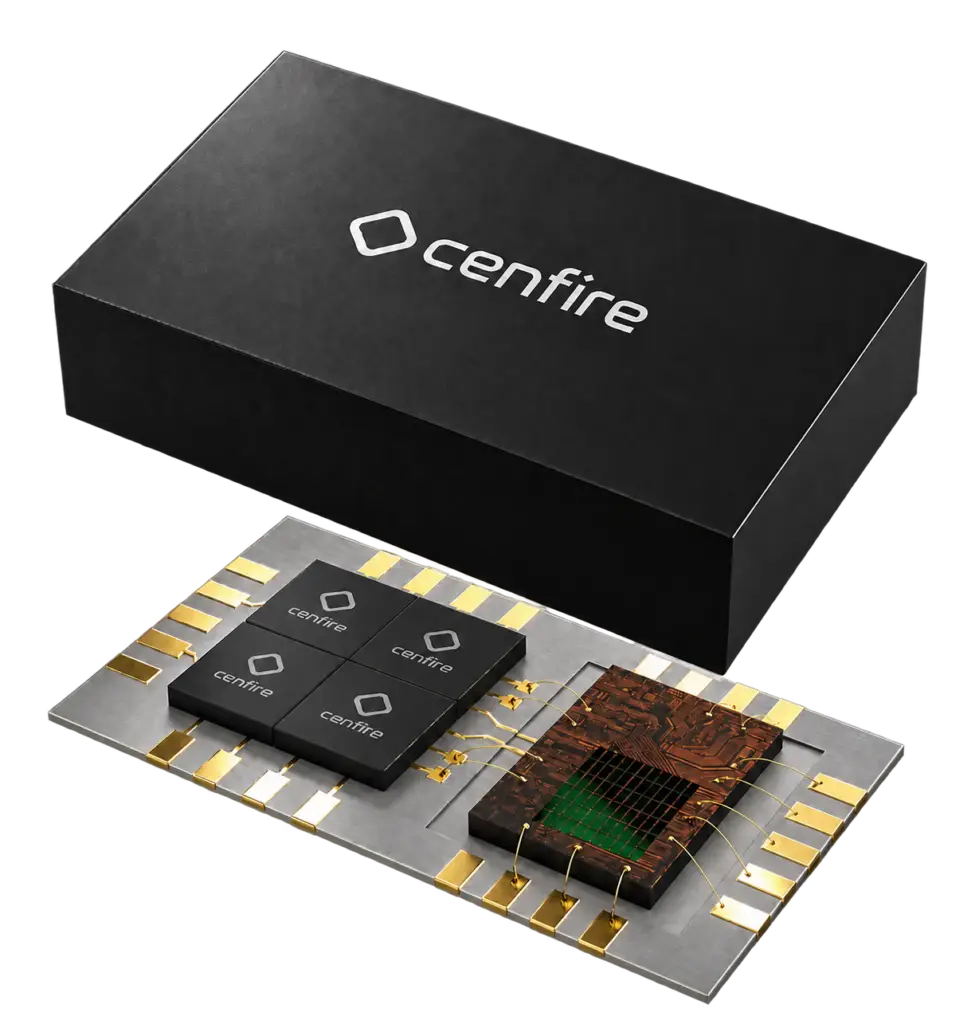

Cenfire’s first standard MEMS switch is a 4xSPST signal relay that can be reconfigured for a variety of applications.
Cenfire’s first standard MEMS switch is a 4xSPST signal relay that can be reconfigured for a variety of applications.
Cenfire’s first standard MEMS switch is a 4xSPST signal relay that can be reconfigured for a variety of applications.
Cenfire’s first standard MEMS switch is a 4xSPST signal relay that can be reconfigured for a variety of applications.
Cenfire’s first standard MEMS switch is a 4xSPST signal relay that can be reconfigured for a variety of applications.
Get the Datasheet
The CF 2140 integrates four low-loss, fully symmetric high-voltage SPST switches with a flexible SPI or GPIO control interface. These switches offer industry-leading capability combining wide bandwidth with DC offset voltage support, small area, low height, and zero leakage current, making them ideal for muxing source and measurement units as well as routing high-speed digital signals.
The CF 2140 integrates four low-loss, fully symmetric high-voltage SPST switches with a flexible SPI or GPIO control interface. These switches offer industry-leading capability combining wide bandwidth with DC offset voltage support, small area, low height, and zero leakage current, making them ideal for muxing source and measurement units as well as routing high-speed digital signals.
The CF 2140 integrates four low-loss, fully symmetric high-voltage SPST switches with a flexible SPI or GPIO control interface. These switches offer industry-leading capability combining wide bandwidth with DC offset voltage support, small area, low height, and zero leakage current, making them ideal for muxing source and measurement units as well as routing high-speed digital signals.
The CF 2140 integrates four low-loss, fully symmetric high-voltage SPST switches with a flexible SPI or GPIO control interface. These switches offer industry-leading capability combining wide bandwidth with DC offset voltage support, small area, low height, and zero leakage current, making them ideal for muxing source and measurement units as well as routing high-speed digital signals.
The CF 2140 integrates four low-loss, fully symmetric high-voltage SPST switches with a flexible SPI or GPIO control interface. These switches offer industry-leading capability combining wide bandwidth with DC offset voltage support, small area, low height, and zero leakage current, making them ideal for muxing source and measurement units as well as routing high-speed digital signals.
4xSPST DC 6 GHz Switch Array features:
True DC operation with Low 3 Ω Ron
True DC operation with Low 3 Ω Ron
DC current capability 600mA per SPST (tested up to 1A)
DC current capability 600mA per SPST (tested up to 1A)
DC current capability 600mA per SPST (tested up to 1A)
Pulse current 2A @125 µs pulse width per SPST
Pulse current 2A @125 µs pulse width per SPST
Pulse current 2A @125 µs pulse width per SPST
High stand-off voltage of 200 V
High stand-off voltage of 200 V
Zero leakage current
Zero leakage current
Fast switching time of 10 µs
Fast switching time of 10 µs
Small 1 x 1 mm footprint for 10 x higher density than competing solutions
Small 1 x 1 mm footprint for 10 x higher density than competing solutions
Small 1 x 1 mm footprint for 10 x higher density than competing solutions
Applications
AC/DC Switching for smart switches
AC/DC Switching for smart switches
Test & Measurement
Test & Measurement
Matrix switching
Matrix switching
TRX filter tuning
TRX filter tuning
Impedance tuning
Impedance tuning
High power RF switching
High power RF switching
MRI / Ultrasound signal switching
MRI / Ultrasound signal switching
Cenfire’s switch platform
Our MEMS ohmic contact relay platform is highly configurable for DC and RF applications (up to 40A and above). Our hermetic unit cell/WLCSP can be put in series to allow for higher off-voltage capabilities (stand-off voltage) or in parallel for higher current capabilities. The WLCSP’s pin-out allows for faster custom packaging throughput, enabling us to offer switching solutions to every industry.
Let us know what your specific application requires.
Our MEMS ohmic contact relay platform is highly configurable for DC and RF applications (up to 40A and above). Our hermetic unit cell/WLCSP can be put in series to allow for higher off-voltage capabilities (stand-off voltage) or in parallel for higher current capabilities. The WLCSP’s pin-out allows for faster custom packaging throughput, enabling us to offer switching solutions to every industry.
Let us know what your specific application requires.
